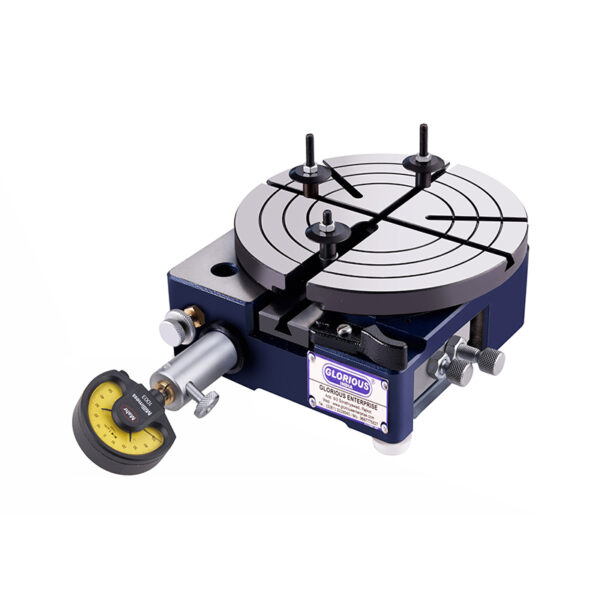

ID/OD Mechanical Comparator Gauge
Function
The ID/OD Comparator compares Outside Diameter (OD) and Internal Diameter (ID) of cylindrical components with master gauge and evaluates ovality and squareness to end faces by Utilizing 2-point (90˚) and 3-point (120˚) measurement methods.
Essential for ensuring dimensional accuracy in the automotive and bearing industries.
Ensures adherence to strict quality standards.
Range Table :
| MODEL NO. | GI-165 | GI-200 | GI-250 | GI-300 | GI-400 | GI-500 | GI-600 | GI-700 |
| BASE PLATE DIAMETER | 165MM | 200MM | 250MM | 300MM | 400MM | 500MM | 600MM | 700MM |
| OUTER DIAMETER RANGE | 15MM TO 145 MM | 15 MM TO 180MM | 15 MM TO 230 MM | 15 MM TO 280 MM | 15 MM TO 380 MM | 15 MM TO 465 MM | 15 MM TO 565 MM | 15 MM TO 665 MM |
| INNER DIAMETER RANGE | 10 MM TO 145MM | 10 MM TO 180MM | 10 MM TO 230 MM | 15 MM TO 280 MM | 50 MM TO 380 MM | 100 MM TO 465 MM | 100 MM TO 565 MM | 100 MM TO 665 MM |
| BASE PLATE HARDNESS | 58-62 Hrc | 58-62 Hrc | 58-62 Hrc | 58-62 Hrc | 58-62 Hrc | 58-62 Hrc | 58-62 Hrc | 58-62 Hrc |
Other Similar Products
-
Details
OD Comparator
An OD Comparator is employed for the precise evaluation and comparison of the Outside Diameter (OD) of components.
It facilitates the assessment of ovality and squareness to end faces using both 2-point (90˚) and 3-point (120˚) methodologies.
This equipment finds extensive application in the automotive and bearing sectors, ensuring dimensional accuracy and compliance with rigorous quality standards in manufacturing processes.
RANGE TABLE:
MODEL NO GD-200 GD-250 GD-300 GD-400 GD500 BASE PLATE DIAMETER 200 MM 250 MM 300 MM 400 MM 500 MM OUTER DIAMETER RANGE 180 MM 230 MM 280 MM 380 MM 465 MM BASE PLATE HARDNESS 58-62 Hrc 58-62 Hrc 58-62 Hrc 58-62 Hrc 58-62 Hrc -
Details
Two Point attachment for small bore
It is used when to measure very small sizes for bore.
-
Details
Granite Comparator Stand
We specialize in Granite Height Comparators, engineered for manufacturers and multinational corporations (MNCs) that prioritize precise height measurements.
Our equipment is customized to client specifications for accurate height and width measurements on surface plates, meeting laboratory standards.
These comparators provide meticulous dimensional accuracy, crucial for industries with strict quality standards and precise manufacturing requirements.
Customized sizes are available as per Client’s requirement.
